12v 1a 12w certified wall mounted power supply

12W 12V 1A UL/BS/CE/KC/SAA/PSE CB AC to DC LED CCTV Adaptor Medical Power Adapter Power Supply 12v

XED-XX120100CC

Model number: XED-XX120100CC
Input Voltage Range: AC 100V-240V 60Hz
Output Voltage: DC 12V
Output Current: 1 Amp
Certification:CE, UL, BS,KC,SAA,PSE , RoHS,ERP .

Customization options:
Customized package with LOGO
Specification Customization .
Cable Length.

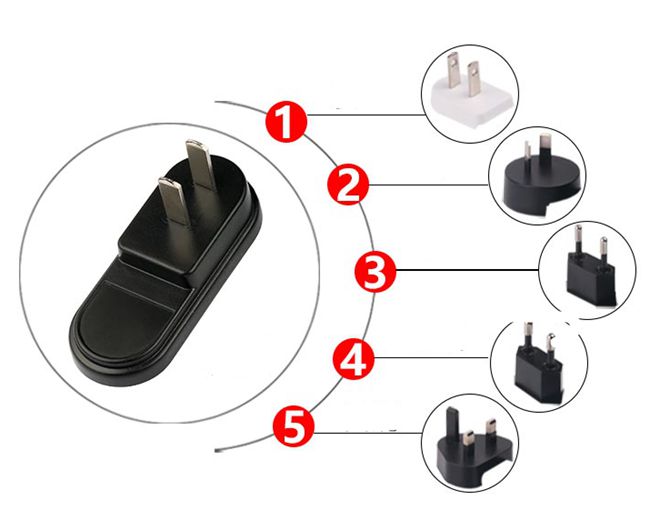

Plug is changebale.
Color: white/black

Quantity:

Contact Now

add to cart

About this item

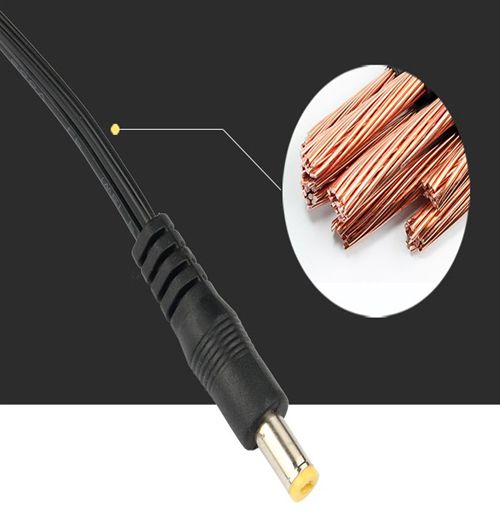

【12v power supply】Input: 100 ~ 240V 50 ~ 60 Hz; Output: 12V 1A 12W Max; Connector Size: 5.5*2.1mm.
【Compatible 】for LED/CCTV Camera/access control system /Medical machine etc.
【Protection 】Over Voltage/Over Curent/Short-Circuit/Over Temperature protection

>>>>This wall-mounted power supply complies with Class II safety standards. To understand what this means and its benefits, explore our article What is Class II Power Supply and Its Application Areas.

**Specification**
Model No.		XED- CE120100CC	XED-UL120100CC	XED-BS120100CC	XED-KC120100CC	XED-BIS120100CC	XED-PSE120100CC	XED-SAA120100CC
OUTPUT	DC voltage	12V	12V	12V	12V	12V	12V	12V
	Rated current	1A	1A	1A	2A	2A	2A	2A
	Current range	1.2-1.6A	1.2-1.6A	1.2-1.6A	1.2-1.6A	1.2-1.6A	1.2-1.6A	1.2-1.6A
	Rated power	12W	12W	12W	12W	12W	12W	12W
	Ripple & Noise	120mv	120mv	120mv	120mv	120mv	120mv	120mv
	Voltage adjustment range	11.4-12.6V	11.4-12.6V	11.4-12.6V	11.4-12.6V	11.4-12.6V	11.4-12.6V	11.4-12.6V
	Voltage Accuracy	±5%	±5%	±5%	±5%	±5%	±5%	±5%
	Linear adjustment rate	±1%	±1%	±1%	±1%	±1%	±1%	±1%
	Load adjustment rate	±5%	±5%	±5%	±5%	±5%	±5%	±5%
INPUT	Voltage range	100-240V	100-240V	100-240V	100-240V	100-240V	100-240V	100-240V
	AC plug type	Euro	USA	British	Korean	Indian	JAPAN	Australian
	Frequency range	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
	Efficiency	83%	83%	83%	83%	83%	83%	83%
	Surge current	2kV	2kV	2kV	2kV	2kV	2kV	2kV
	Leakage current	0.25mA	0.25mA	0.25mA	0.25mA	0.25mA	0.25mA	0.25mA
PROTECTION	Over load	105%-150%	105%-150%	105%-150%	105%-150%	105%-150%	105%-150%	105%-150%
PROTECTION	Over voltage	10.8-13.2V	10.8-13.2V	10.8-13.2V	10.8-13.2V	10.8-13.2V	10.8-13.2V	10.8-13.2V
ENVIRONMENT	Working temperature	0-40℃	0-40℃	0-40℃	0-40℃	0-40℃	0-40℃	0-40℃
ENVIRONMENT	Storage temperature and humidity	-40℃~+70℃	-40℃~+70℃	-40℃~+70℃	-40℃~+70℃	-40℃~+70℃	-40℃~+70℃	-40℃~+70℃
Safety regulation and electromagnetic compatibility	Safety regulations	EN62368-1	UL62368-1	BS EN62368-1	K60950-1	/	J62368-1	AS/NZS 60950-1
	Insulation impedance	>100MΩ	>100MΩ	>100MΩ	>100MΩ	>100MΩ	>100MΩ	>100MΩ
	Withstand voltage	3kv	3kv	3kv	3kv	3kv	3kv	3kv
	Electromagnetic interference	EN 55032	FCC Part 15 Subpart B	BS EN55032	KN32;KN35	/	J55032	AS/NZS CISPR 32
Others	MTBF	50000Hours	50000Hours	50000Hours	50000Hours	50000Hours	50000Hours	50000Hours
Others	Dimensions	74.52882.5MM	74.52862.5MM	755070MM	74.52882.5MM	/	74.52862.5MM	74.54149MM

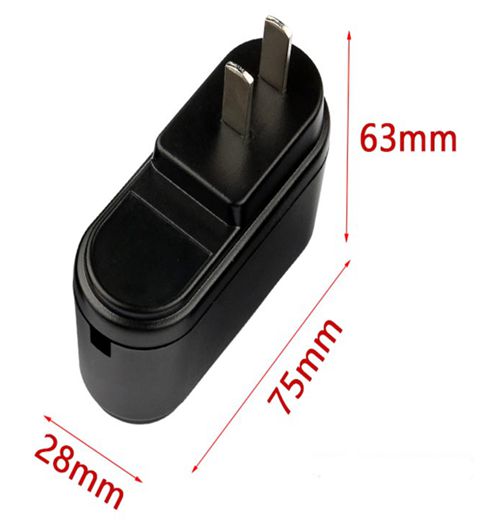

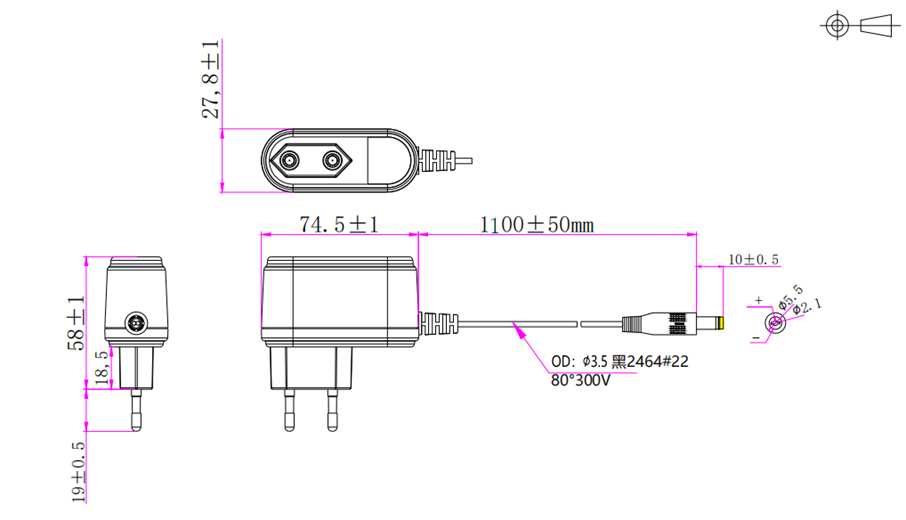

12v 1a 12w certified wall mounted power supply Dimension :
