What is Class II power supply and its application areas ?

2. Analysis of the advantages and limitations of Class II power supplies

The widespread applicability of Class II power supplies stems from their significant advantages in several areas.

First, they offer exceptional safety: Their independence from grounding ensures reliable protection even in environments with a failed grounding system or improper installation, significantly reducing the risk of electric shock. Second, their exceptional ease of use: The two-pin plug design makes plugging and unplugging easier, eliminating the need for dedicated outlets with grounding holes. This improves device portability and deployment flexibility.

Class II power supplies also excel in cost-effectiveness.Eliminating the ground wire and associated components not only reduces manufacturing costs but also reduces the amount of wire used. Furthermore, users do not need to modify circuits or install grounding systems specifically for use with Class II devices, saving installation costs. Furthermore, the compact design allows Class II power adapters to be extremely small and lightweight, perfectly aligning with the trend toward miniaturization in modern electronic products.

However, Class II power supplies also have certain limitations.

First, they are difficult to repair: double insulation typically requires a compact internal structure and tight packaging (often using potting or integrated packaging), making fault diagnosis and repair extremely challenging. Direct replacement is often more economical and practical than repair. Second, power limitations: For high-power devices, designing a double insulation system that meets safety requirements results in a significant increase in insulation material cost and size. Therefore, high-power devices typically still utilize Class I grounding protection solutions.

Furthermore, Class II power supplies may lack electromagnetic interference (EMI) shielding, as the ground wire sometimes doubles as an EMI shield. Compensating for this lack of a ground connection may require more complex circuit design. Finally, users may be lulled into a false sense of security by the two-prong plug, mistakenly believing that all devices without a ground wire are safe. In reality, only certified products bearing the "回" symbol are truly Class II devices.

3. Application fields and security scenario practices of Class II power supplies

Class II power supplies have gained widespread adoption across a wide range of fields thanks to their safety features and convenience.

In consumer electronics, the vast majority of everyday devices such as mobile phone chargers, laptop power adapters, desk lamps, and hair dryers utilize Class II designs. In industrial control, Class II power supplies, particularly DIN rail-mountable models, are also commonly used to power low-power devices such as PLCs, remote I/O modules, sensors, and measuring instruments. LED lighting systems, particularly outdoor and landscape lighting projects, also widely utilize Class II-powered LED modules for enhanced safety.

Class II power supplies are particularly popular in the security sector, where their reliability and safety are fully demonstrated. Closed-circuit television (CCTV) systems are one of the most common applications for Class II power supplies. Whether it's network cameras (IPCs), dome cameras, or speed dome cameras, many require a 12V or 24V DC power supply. Class II power supplies, particularly DIN rail-mountable models, are often centrally installed in low-voltage shafts or distribution boxes to power multiple cameras. Their lack of grounding simplifies installation, while double insulation enhances overall safety.

Access control systems are another key application area. Devices such as access controllers, card readers, and electric locks (such as electromagnetic locks and electric mortise locks) typically require 12VDC or 24VDC power. Class II power supplies provide stable power for these devices, and their compact design makes them suitable for installation in limited spaces, such as floor distribution boxes. In burglar alarm systems, front-end devices such as intrusion detectors (such as infrared and microwave dual-detection detectors), alarm panels, and audible and visual alarms also require the stable and reliable power provided by Class II power supplies.

Class II power supplies are often used to power a building's overall security system. They are typically installed in distribution panels, providing power to various security devices. They comply with building automation machinery dimensional standards (such as DIN 43880) and are NEC Class 2/LPS certified, ensuring output energy limitations for enhanced safety.

4. Key factors in selecting and purchasing Class II power supplies

Selecting the right Class II power supply is crucial for ensuring stable system operation. Safety regulations and certifications are paramount considerations during the selection process. Ensure the product is clearly marked with the Class II symbol or "double insulated" and has passed the safety certifications required by the target market, such as China's CCC, North America's UL/cUL (common standards UL 1310 or UL 62368-1), and the EU's CE mark (based on EN 62368-1). Energy efficiency certifications such as the US Department of Energy's Level VI and the EU's ErP Lot 7 should also be considered.

Electrical characteristics are another key parameter. The input voltage range should be wide (e.g., 85-264VAC) to accommodate unstable power grid environments. The output voltage and current must fully match the load device's requirements, with a 20%-30% margin for rated power. Voltage regulation (the stability of the output voltage under load fluctuations) and ripple and noise (the magnitude of the AC component in the output DC current) also significantly impact device performance.

The application scenario and installation method determine the specific form factor of the power supply. Desktop power supplies (with a power cord that plugs directly into a wall outlet) are suitable for small devices; DIN-Rail power supplies facilitate centralized power supply in industrial control cabinets and security distribution boxes; open power supplies (without an enclosure and built into the device) offer lower costs but require more precise design; and onboard power supplies are directly soldered to the device's motherboard. The connection method (terminal blocks, DC plug, or wires) must also match the device's interface.

Environmental adaptability is crucial. The operating temperature range (e.g., -25°C to +70°C) must meet the application's requirements, and the power derating curve for high temperatures must be carefully considered. For outdoor or humid, dusty environments, select products with a high IP rating (e.g., IP67). Furthermore, reliability metrics (e.g., mean time between failures (MTBF), warranty period, brand reputation, and additional features such as power factor correction and various protections (overload, overvoltage, short circuit, and overtemperature) should all be considered in a comprehensive evaluation.

When it comes to cost and supply, it's important to consider not only the unit price but also the total cost of ownership (TCO), including procurement, installation, energy, and potential failure risks. The supplier's lead time, inventory stability, and technical support capabilities are also crucial factors in ensuring a smooth project implementation.

5. Common Fault Diagnosis and Solutions for Class II Power Supplies

Although Class II power supplies are designed to be reliable, they can still experience various faults. Common faults include no output, unstable output, excessive noise, and overheating.

If there's no output (no indicator light), first check the power input (is the outlet live, is the circuit breaker tripped?), then check the power cord for a fault (broken internal cable, poor plug contact). The simplest way to troubleshoot is to replace the power cord with a known good one. If all of these are correct, the power supply may be faulty (a blown input fuse, a burned-out rectifier bridge, or a switching transistor). In this case, replace the entire power supply unit.

Unstable output may be caused by low input voltage (outside the power supply's operating range), overload (the total power of connected devices exceeds the rated power), poor contact at the output terminals, or aging of internal components (such as filter capacitors). To troubleshoot, first measure the input voltage to ensure it is within the nominal range. Then, disconnect all loads and measure the no-load voltage. If the no-load voltage is normal, reconnect each load to identify the overloaded device. If the no-load voltage is also abnormal, the power supply may be internally damaged and require replacement.

Excessive noise (whistling, humming) may be caused by coil/transformer whistling (large load fluctuations, component manufacturing problems), capacitor whistling (piezoelectric effect of ceramic capacitors), or fan noise (dust accumulation or bearing wear). Mild whistling may not affect use, but excessive noise accompanied by performance degradation is a sign of component aging and should be replaced.

Overheating (excessively hot housing) is typically caused by overloading, poor heat dissipation (installation in a confined space, blocked vents), high ambient temperature, or aging components. If overheating is detected, immediately disconnect the load, check for overload, and improve heat dissipation. If the heat dissipation is adequate and the power supply is not overloaded, the power supply is faulty and must be replaced.

It's important to note that Class II power supplies are sealed and must not be disassembled by non-professional personnel. Unauthorized opening not only compromises insulation protection, creating a risk of electric shock, but also invalidates safety certifications. For end users, the safest and most cost-effective troubleshooting method is to first check external factors (power cord, outlet, load, heat dissipation). If the problem persists, replace the entire power supply unit.

6. Maintenance strategies and safety practices for Class II power supplies

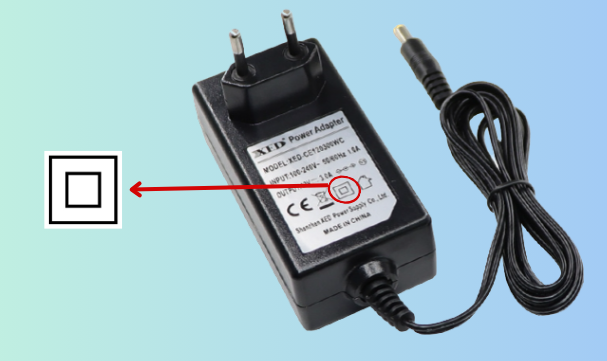

To ensure the long-term stable operation of a Class II power supply, implementing proper maintenance strategies and safety practices is crucial. Regarding safety practices, first, ensure that only products bearing official safety certification marks and the Class II symbol (⧉) are purchased and used. Secondly, disassembling the power supply casing is strictly prohibited, as this compromises insulation protection and poses a risk of electric shock. Furthermore, use the original or matching power cord correctly, and avoid pulling or bending the cable with force.

Environmental management is also crucial. The power supply should be well ventilated, ensuring at least 5-10 cm of heat dissipation clearance around it to avoid covering the power adapter during operation. Avoid using the power supply in environments with extreme temperatures, high humidity, high dust levels, or flammable or explosive gases. For special environments, choose an industrial-grade power supply with the appropriate level of protection. Furthermore, be wary of physical damage—if the power supply casing shows cracks, deformation, or signs of burning, immediately stop using it and replace it. Also, keep the power supply dry and away from water and humid environments. If it accidentally gets wet, it must be thoroughly dried and inspected by a professional before being powered on.

Routine maintenance should include regular visual inspections (check the housing for cracks, swelling, discoloration, ports for oxidation, dust accumulation, and cables for wear every quarter or six months), cleaning (wipe the housing with a dry soft cloth when the power is off, and clean the vents with a soft brush or blower), tactile inspections (after running under normal load, the housing should be warm but not hot to the touch), and auditory inspections (listen for abnormal high-frequency whistling or dangerous arc discharge crackling).

Load management is a key component of preventive maintenance: Ensure that the total power consumption of all connected devices does not exceed the rated output power of the power supply (a 20-30% margin is recommended), and avoid prolonged full-load operation. Additionally, it's recommended to maintain a maintenance log, recording the results of each inspection and the actions taken, to track the power supply's status and predict its lifespan.

Ultimately, a Class II power supply should be considered a non-repairable black box. Maintenance efforts should focus on external inspection, ensuring a healthy operating environment, and decisive replacement if any abnormalities occur. This "prevention is better than repair" strategy is the most effective and economical way to ensure safety.

7. Conclusion

Class II power supplies, through their innovative double-insulation design, strike a perfect balance between safety and convenience, making them an ideal choice for powering modern electronic devices. Their applications are expanding, from consumer electronics to critical security systems, from industrial control to smart homes. Proper selection, use, and maintenance of a Class II power supply not only ensures stable device operation but also provides users with the highest level of safety and protection.

As technology continues to advance, Class II power supplies are also moving toward higher efficiency, smaller size, and greater intelligence, while maintaining their core safety advantages. Understanding the principles, characteristics, and best practices of Class II power supplies is crucial for electronics engineers, system integrators, and even end users. Only by fully understanding their operating principles and safety features can we maximize the advantages of Class II power supplies and provide a reliable and safe energy foundation for various electronic systems.
